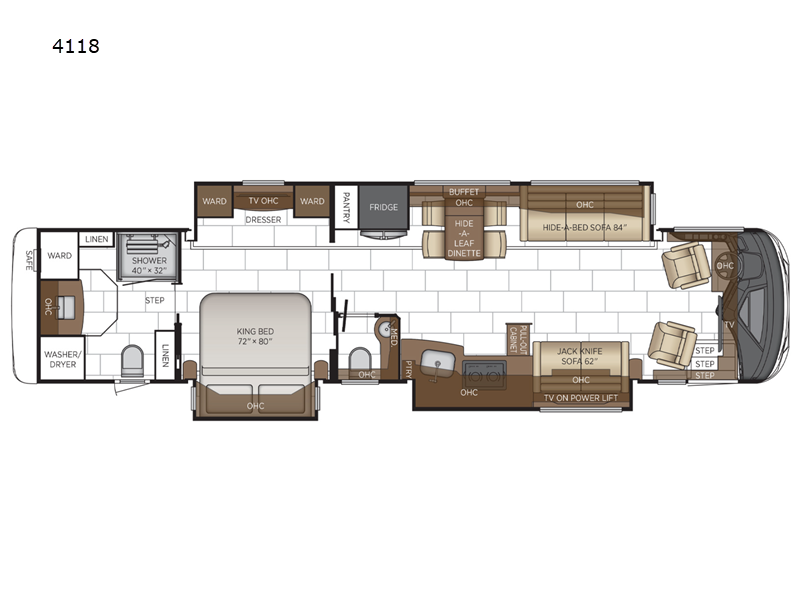

New 2024 Newmar Mountain Aire 4118

Motor Home Class A - Diesel

Stock #16862

Grand Rapids, MI

1 of 6

Miles: 150

Sleeps 5
3 Slides
Bath and a Half

Rear Bath

42ft Long
42,500 lbs

See All Specs

Specifications

Sleeps	5	Slides	3
Length	41 ft 10 in	Ext Width	8 ft 6 in
Ext Height	13 ft 2 in	Int Height	6 ft 11 in
Hitch Weight	15000 lbs	GVWR	54000 lbs
Dry Weight	42500 lbs	Cargo Capacity	11500 lbs
Fresh Water Capacity	105 gals	Grey Water Capacity	80 gals
Black Water Capacity	60 gals	Furnace BTU	50000 btu
Fuel Type	Diesel	Miles	150
Engine	Cummins 11.9L	Chassis	Spartan K3 Tag Axle
Horsepower	525 hp	Fuel Capacity	150 gals
Wheelbase	282 in	Available Beds	King
Torque	1695 ft-lb	Refrigerator Type	Whirlpool
Refrigerator Size	19.7 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Shower Size	40" x 32"
Number of Awnings	2	Axle Weight Front	20000 lbs
Axle Weight Rear	20000 lbs	Axle Weight Tag	14000 lbs
Water Heater Type	Demand	AC BTU	30000 btu
TV Info	LR Samsung LED TV, BR Samsung LED TV	Awning Info	Nova Power
Washer/Dryer Available	Yes	Gross Combined Weight	69000 lbs
Shower Type	Shower w/Seat	Electrical Service	50 amp
VIN	4VZU1E19RC095430

Description

Newmar Mountain Aire Class A diesel motorhome 4118 highlights:

Bath and a Half
Two Sofas
King Bed
Whirlpool Refrigerator
Exterior Shower

Don't pass up your opportunity to travel in pure luxury with this motorhome! The master suite has a king bed slide for a good night's rest across from a dresser with a Samsung LED TV and wardrobes on either side. Attached to the bedroom is your very own full rear bathroom which has a 40" x 32" shower with a seat next to a linen closet and wardrobe, as well as a Splendide stacked washer and dryer next to the vanity sink. The chef will have everything they need to prepare delicious home cooked meals including a cabinet pull-out, a stainless steel 30" convection microwave with air fryer feature and a Whirlpool 19.7 cu. ft. refrigerator to keep the perishables fresh, plus the half bathroom is by the kitchen for quick bathroom breaks while cooking. Enjoy your meals at the hide-a-leaf dinette and relax on either the 84" hide-a-bed sofa or the 62" jackknife sofa while watching your favorite movies on the Samsung LED TV on power lift!

Explore the world in peak luxury with any one of these Newmar Mountain Aire Class A diesel motorhomes! They are exclusively built on a Spartan K3 tag axle chassis with a 525 HP and 1,695 lb./ft. of torque to make them easy to drive. Their industry-exclusive full paint Masterpiece Finish comes in four different color options each of which will turn heads down the highway. Hydraulic leveling jacks make set up quick and easy, and the fiberglass roof with integrated gutter rail will help to keep water away from your unit. The aluminum-frame sidewalls and roof construction are covered by the gel-coated fiberglass exterior sidewalls, front, and rear caps. You will also find finer amenities, features, and options all throughout the interiors. Come find the best one for you today!

Features

Standard Features (2024)

Exterior

Full-Paint Masterpiece Finish™ with Cut & Buff with Beta Fusion Protection on Front Cap
Lighted Newmar Badge in Front Grill
Convex Exterior Mirrors with Remote Control, Defrost, Turn Signals and Side View Cameras
Chrome Power Baggage Door Locks, Keyless Entrance Door with Touch Pad and Door Bell
Entrance Door with Automatic Step
Rear Hitch for Towing Car
Assist Handle at Entrance Door
Mud Flaps
Rear Protective Tow Guard with Stainless Steel Newmar Name Cutout
Undercoating
Hydraulic Leveling Jacks
Stainless Steel Exterior Trim Pieces and Entrance Door Kick Panel
Storage Bins in Pegboard Compartment

Optional

Stainless Steel Trim Kit for Exterior Compartment Doors
Flag Pole Bracket
Storage Tray 24 X 58 Power Location-Bay 2
Storage Tray 26 X 90 Power Location-Bay 2
Storage Tray 26 X 91 Non-Power, Location Bay 2
Storage Tray 27 X 56 Non-Power Location-Bay 2
Storage Tray 27 X 56 Non-Power Location-Bay 3
Storage Tray 29 X 58 Power Location-Bay 3
Storage Tray 40 X 90 Power, Location-Bay 2
Storage Tray 40 X 90 Power, Location-Bay 3
Storage Tray 42 X 91 Non-Power, Location-Bay 2
Storage Tray 42 X 91 Non-Power, Location-Bay 3
Storage Tray 43 X 56 Non-Power, Location-Bay 3
Storage Tray 43 X 56 Non-Power, Location-Bay 4

Construction

Fiberglass Roof and Integrated Gutter Rail
Gelcoated Fiberglass Exterior Sidewalls, Front and Rear Caps
Aluminum-Frame Sidewalls & Roof Construction, 16" on Center
5/8" Foam Insulation Laminated in Sidewalls & Ceiling
Polar Pak R19 Batten Insulation on Roof
Automatic Mechanical Lock Arms on Non Hydraulic Slideout Rooms-Paddle Style
Egress Door with Ladder System

Chassis

Spartan K3 Tag Axle 525 HP
Air Leveling System
Aluminum Wheels
Electronic Chassis Information Center in Dash
Electronic Stability Control
Cruise Control
Comfort Drive™ Steering with Power Column & Adjustable Control
Steering Wheel Nine Function Switch Pod in Center on Spartan® Chassis
Recessed Fuel Fills with Crossover to Fill from Either Side
Back-Up Alarm
Anti-Lock Braking System
Chassis Battery Disconnect
Automatic Headlights ON/OFF
Push Button Engine Start
Glass Dash Instrumental Panel
On Guard Collision Mitigation Adaptive Cruise System with Adj. Following Distance Control on Spartan Chassis
Tire Pressure Monitoring on Tag Axle Chassis
Mobile Eye Lane Tracking and Lane Departure Warning System
Valid Digital Glare Free Dash on Spartan® Chassis
Valid Generation 3 TPMS System on Spartan® Chassis

Optional

Curt Spectrum Integrated Brake Control on Spartan Chassis

Mechanical and Electrical

Windows, Awnings, and Vents

Frameless Double-Pane Tinted Safety-Glass Windows
Fantastic® Vent with Rain Sensor in Kitchen, Bathroom and Enclosed Stool Room
Hardwood Louvered Cover on Fantastic® Vent in Kitchen
Skylight Above Shower*
Girard Package-Two Nova Side Awnings, Slideout Covers, Entrance Door & Power Window Awnings
One Piece Tinted Windshield
Driver Side Power Window
Large Non-Ventilated Living Room and Dinette Windows

Optional

Kitchen Window

Air Conditioning and Heating

Three 15K BTU Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat on 41’ and 45’ Floor Plans
Two 15K BTU Penguin™ Heat Pump Central Air Conditioners with Remote Control Thermostat on 38’ Floor Plan
Chinook Dual Loop Heat with Continuous Hot Water
Dash Heater and Air Conditioner
Driver & Passenger Dash Overhead Ventilation System
Wall Mounted Sensors for Heating and Air Conditioning
Roof Air Conditioning Drainage System
Electric Radiant Heat Installed Below Main Floor Tile

Electrical

10 Kw Cummins Onan® Diesel Generator on 38’ Floor Plans
12.5 Kw Cummins Onan® Diesel Generator on 41' and 45' Floor Plans
50 Amp Electrical Service with Flexible Cord with Automatic Transfer Switch
Eight 6-Volt House Batteries
Battery Disconnect Switch for House Battery
10 Watt Solar Panel to Charge Chassis Battery
3000 Watt True Sine Inverter
12 Volt Auxiliary Receptacle on Dashboard
Emergency Engine Start Switch
Engine Block Heater
Energy Management System
Exterior Security Lights
Midship Side Turn Signals
LED Lights Recessed in Ceiling and Underneath Overhead Cabinets
Accent Lights in Feature Ceiling, Slideout Fascia Trim and Lambrequins
LED Lighting in Pull Out Pantry, Kitchen and Bathroom Base Cabinets
LED Lights in Exterior Storage Compartments on Automatic Switches
LED Lights Installed Under Door Side Slideouts
Lights in Wardrobes
Manually Operated Hold-To-Run Slideout Switch
Automatic Generator Start on Low Battery or Temperature Setting
Cable TV Connection
Interior Courtesy Lights
USB Charger at Dinette & Bedroom Night Stand
USB Outlet at Dash for Driver Use
Power Rewind Wheel with 50’ Cord*
Recessed Docking Lights
KIB Touch Screen Interior Light and Shade Controls
Secondary Multiple Touch Screen in Bedroom
All Lights Off Function in Bedroom
Silverleaf® Multiplex Electrical Wiring System
Slideout Switch Manually Operated Hold to Run
Rozie Remote Internet Connection for Silverleaf Multiplex System
System Control App to Control Numerous Features from Personal Device
Solar Prep with Six Gauge Wire from Roof to House Battery Compartment
Spare Fuses in Chassis and House Fuse Panels
Wireless Phone Charger Pad in Driver Area
Wireless Charging Mat Built into Passenger Console
110 Volt Recept in Bed Overhead with Two Pass Through Ports
110 Volt/USB Outlet at Head of Each Bunk*
Dimmable with Adjustable Aim Reading Lights at Head of Bed
Transfer Switch with Surge Protector
Dash Radio, Cameras and Monitors to Power-up from both House Batteries and Ignition

Optional

LED Strip Lighting Installed Under Off Door Side Slideouts
Four Flexible 100 Watt Solar Panels on Roof
Lithium Ion 640 AHR Battery System with Two 3000W Pure Sine Inverters
Lithium Ion 960 AHR Battery System (Three Batteries) with Two 3000W Pure Sine Inverters

Plumbing

Demand Water System
Sewage Holding-Tank Rinse
Dometic® 321 China Bowl Stool or Macerator Stool*
Aqua Miser Shower System
Tiled Shower Walls with Glass Door
Soap Dispenser in Shower
Fold Down Shower Seat
Water Filter for Entire Unit
Exterior Shower
Auto Fill for Fresh Water Tank
Power Water Hose Reel
Hot Water Line to Generator Area*
Bladder Tank for Water Pump System

Optional

Assist Handle in Shower
RV Sanicon Turbo System

Interior

Cabinets and Furniture

Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors with Matte Finish
Concealed Hinges on Cabinet Doors
Super Polished Solid Surface Countertop in Kitchen with Under Mounted Stainless Steel Sink and Sink Covers
Super Polished Solid Surface Countertop in Bathroom and Bedroom
Cooktop Cover Flush, Matching Countertop Material
Lifts on Bed Top
Passenger Seat Work Station
Pullout Pantry Shelves*
Push to Release Drawer Slides in Pantry
Soft Close Cabinet Doors*
Pantry with Space for Serving Trays and Bakeware
Drawers with Dove Tail Sides with Self Closing Full Extension Ball Bearing Guides
Villa Ultra Leather Sofa and Driver/Passenger Seats with Integrated Seat Belts
Driver Seat with Vibrator for Haptic Feedback
Driver and Passenger Seats Heated with Power-Lumbar, Recline, Footrest and Standard Width Passenger Seat
Plush Pillow Top Mattress*
Extended Rotation Concealed Hinge for Washer/Dryer Cabinet Door
Side Folding Hide-A-Bed Sofa with Memory Foam Mattress*
Full Height Wardrobes Beside Lav*
Mesh Cell Phone Holder at Each Bunk Bed*
Molded Silverware Divider Tray
Dinette Euro Booth with Two Table Leaves and Two Folding Chairs*
Bed Base Power Incline Retract with R5 Air Mattress on 3825 Floor Plan

Optional

Glacier Glazed Maple Hardwood Cabinets with Raised Panel Doors with High Gloss or Matte Finish
Bermuda Glazed Maple Hardwood Cabinets with Raised Panel Doors-High Gloss
Driftwood Glazed Maple Hardwood Cabinets with Raised Panel Doors with High Gloss or Matte Finish
Sable Maple Hardwood Cabinets with Raised Panel Doors-High Gloss Or Matte Finish
R5 Radius Corner Air Mattress
Power Extenda Flex Dinette
Buffet Dinette
Combination Desk/Dinette with Buffet Table, Two Fixed/Two Folding Chairs
Combination Desk and Dinette with Buffet Table, Two Fixed and Two Folding Chairs
Dinette Convertible with Two Fixed and Two Folding Chairs that Face Window
Euro Booth Dinette with Two Table Leaves and Two Folding Chairs
Two Recliners with Lampstand and Reading Lights
Two Ottomans*
Passenger Seat Queen Size
Powered Theater Seating 74"
Powered Theater Seating 84"
Powered Theater Seating 87”

Appliances

Stainless Steel 30” Convection Microwave with Air Fryer Feature
All Electric Cooktop Flush Mount Induction
Air Horns
Whirlpool® 19.7 Refrigerator
Splendide Two-Piece Stacked Washer/Dryer
Dometic 3.0 Cf Freezer on Pullout Tray in Exterior Baggage Compartment*
Storage Shelf Above Freezer
Central Vacuum with Tool Kit

Optional

Dishwasher in Drawer with Stainless Steel Front

Interior

Designer Feature Ceiling and Cathedral Ceiling with Added Height on Rear Bath Floorplans*
Tile Floor in Kitchen, Bathroom, Bedroom and Living Area
Auto Motion Power Shades and Lambrequins
Auto Motion Power Shades for Windshield and Driver/Passenger Side Windows
Hardwood Window Sills
Hardwood Raised Panel Interior Passage Doors
Flush Handles on Swinging Bath Doors
Interior Assist Handle at Main Entry Door
Fitted Non-Quilted Bedspread with Accent Pillows
Safe Located in Bedroom Wardrobe
Waste Basket in Kitchen Base Under Sink
Maximized Shoe Storage Shelves Recessed in Rear of Wardrobe

Entertainment

Audio and Video

Samsung LED TV in Living and Bedroom Areas* (TV Sizes Vary Per Floorplan)
Samsung 43” 4K LED TV in Front Overhead
Samsung 50” 4K LED TV on Televator in Living Area*
Bose® 500 Subwoofer
Bose® 700 Sound Touch Sound Bar in Livingroom
Xite Dash Radio with Apple Carplay, 10” Dual Monitor with Nav-N-Go Navigation
Xite HD 360 Camera System with Predictive Grid Lines and Tri-View Rear Camera
Rearview Color Monitor System with Audio
Winegard Rayzar Automatic Digital TV Antenna
Satellite Dish Prep on Roof
Two Bedroom Radio Speakers
TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
Cat 6 TV Cables
Infra Red Repeater System to Operate Audio/Visual Components
WiFi Ranger Tenton/Poplar LTE
10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector

Optional

Sirius Satellite Radio Capability (Does not include monthly subscription)
Exterior Entertainment Center in Sidewall with Samsung 43” 4K LED TV and Soundbar
Exterior Entertainment Center in Storage Compartment with Samsung 43” 4K LED TV & Bose® Soundbar
Wifi System Everest with Aspen Interior Router
Winegard Automatic Open Face Satellite Dish-For Dish HD & Bell HD TV
Winegard Automatic Open Face SWM Satellite Dish-for Direct TV Std/HD & In-Motion Direct TV Std, Dish Std/HD
Winegard Automatic Open Face Satellite Dish & Winegard In-Motion for Dish Network
Winegard Automatic Open Face Satellite Dish for Direct TV
Extra Monitor on Passenger Side
Rear Camera (2) Prep for Use with Stacker Trailer
Universal Toll Module

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

I highly recommend!
his review is long overdue. I had been gathering information for a class A RV for about 2 years and had visited several dealers in the surrounding states as well as hitting all the shows. We decided Newmar was our choice, and the Dutch Star was the model. I have a dealer about 40 miles north but Midway’s

David
Great experience!
Midway is the best RV center to deal with. Good, quality product and they keep in touch!

Cheryl
Great parts department!
Very nice. Kevin in the parts department is very helpful and informative.

Mike

We are here to help, call us at
616-384-9117 or Contact Us

We are here to help!

616-384-9117
Contact Us
Contact Sales

Midway RV Center is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @616-384-9117 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2024 Newmar Mountain Aire 4118

4118 Floorplan

Specifications

Description

Features
