+99- MSRP: $277,179
-
Sleeps 5
-
3 Slides
-
Rear Bedroom
-
33ft Long
-
21,450 lbs
-
Burma, Rimini, Townsend

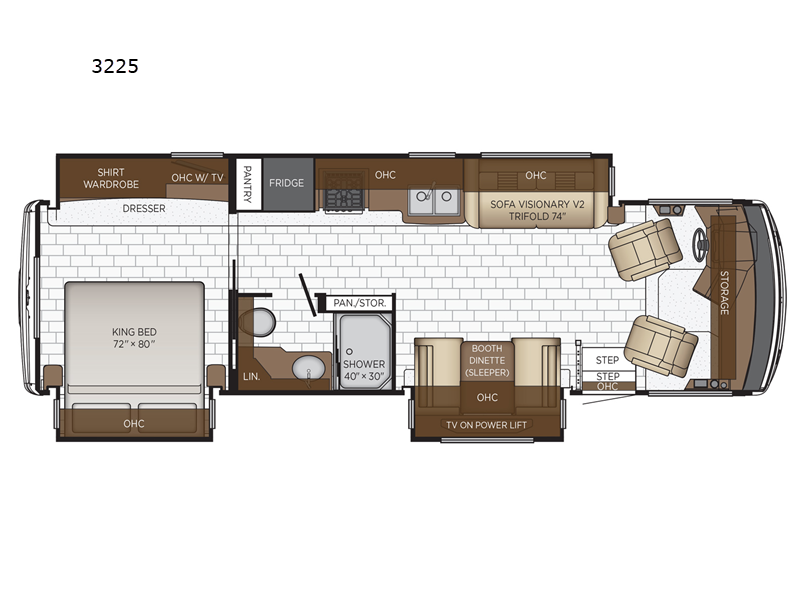

3225 Floorplan
Specifications
| Sleeps | 5 | Slides | 3 |
| Length | 32 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Int Height | 7 ft |
| Interior Color | Burma, Rimini, Townsend | Exterior Color | Dudley, Lenland, Somerset |
| Hitch Weight | 5000 lbs | GVWR | 24000 lbs |
| Dry Weight | 21450 lbs | Cargo Capacity | 2550 lbs |
| Fresh Water Capacity | 75 gals | Grey Water Capacity | 40 gals |
| Black Water Capacity | 60 gals | Furnace BTU | 35000 btu |
| Generator | 5.5 kW Onan | Fuel Type | Gas |
| Miles | 115 | Engine | 7.3L V8 |
| Chassis | Ford F-53 | Horsepower | 350 hp |
| Fuel Capacity | 80 gals | Wheelbase | 228 in |
| Available Beds | King | Torque | 468 ft-lb |
| Refrigerator Type | Norcold | Refrigerator Size | 10 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Shower Size | 40" x 30" | Number of Awnings | 1 |
| Axle Weight Front | 9000 lbs | Axle Weight Rear | 15500 lbs |
| LP Tank Capacity | 25 gals | Water Heater Capacity | 6 gal |
| Water Heater Type | Gas/Electric | AC BTU | 27000 btu |
| TV Info | LR Samsung LED TV Lift, BR Samsung LED TV | Awning Info | Carefree Travel'R Side Awning with Strip Lighting |
| Gross Combined Weight | 30000 lbs | Shower Type | Standard |
| Electrical Service | 50 amp | VIN | 1F66F5DN3R0A01669 |
Description
Newmar Bay Star Class A gas motorhome 3225 highlights:
- Full-Wall Slide
- Booth Dinette
- Pantry
- Convection Microwave
Make each trip luxurious in this spacious coach that can sleep five to six people each night. You will wake up feeling refreshed after sleeping on the king bed slide out, and your guests can put away their bedding after sleeping on the sofa visionary V2 tri-fold sofa and booth dinette. Breakfast can be made on the three burner cooktop or in the 30" convection microwave. You will appreciate the pantry and a Norcold 10 cu. ft. refrigerator for your food, plus there is a second pantry/storage that will be perfect for snacks. This model also includes a shirt wardrobe in the bedroom, along with a dresser so you can bring along your favorite outfits. And you'll never go bored with Samsung LED TV's in the bedroom and living area!
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 350 HP and 468 lb./ft. of torque. The exterior is sure to turn heads with its Full-Paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl tile flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered, such as the optional exterior entertainment center!
- Special Order Full Paint, Stowe Decor, Mesa Glazed Cabinets, Ford Chassis, Bose Solo Sound Bar, Continuous Hot Water Heater, Norcold 3 Door Fridge, Winegard Rayzor Antenna, Solar Prep, Rear Ladder, Holding Tank Heat Pad, Water Filter
Features
Standard Features (2025)
Exterior
- Full-Paint Masterpiece Finish™ with Clearcoat Finish
- Diamond Shield Protection on Front Cap
- Automatic Step for Entrance Door
- Convex Exterior Mirrors with Defrost and Remote Control
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Undercoating
- Mud Flaps
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touchpad
Optional
- Rear Ladder
- Flag Pole Bracket
Construction
- One Piece Molded Fiberglass Roof
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation in Roof
- Automatic Mechanical Lock Arms on Slide out Rooms-Scissor Style
- Entrance Door Power Opening for Wheel Chair Lift on 3811
Optional
- Egress Door with Ladder System
- Power Entrance Step Well Cover on 3811
Chassis
- Ford® F-53 Chassis with 7.3Ltr V-8 Engine, 24,000 lb. on 30'-32’ Floor Plan
- Ford® F-53 Chassis with 7.3Ltr V-8 Engine, 26,000 lb. on 34’-38’ Floor Plan
- Aluminum Wheels
- Cruise Control
- Tilt Steering Wheel
- Anti-Lock Braking System
- Electronic Stability Control
- Auto Emergency Break, Distance Alert, Post Impact Braking and Lane Departure Warning
- Driver Alert System and Message Center
- Forward Collison Mitigation System, Adaptive Cruise Control, Auto High Beams and Passive Entry
Mechanical and Electrical
Windows, Awnings & Vents Features
- One Piece Tinted Windshield
- Frameless Double Pane Tinted Safety-Glass Windows
- Fan-Tastic® Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Carefree Travel'r Power Awning with Alumaguard and Strip Lighting
- Rear Window in Bedroom
- Slideout Covers
Optional
- Screen Door Over Wheelchair Lift Area on 3811
Air Conditioning and Heating Features
- Two 13.5K BTU Penguin™ Heat Pump A/C, 5.5 Onan® Generator, 50 Amp Service and Energy Management System
- Dash Heater and Air Conditioner
- Propane Gas Furnace with Ducted Heat
- Defrost Fans Built into Front Overhead
Optional
- Auxiliary Heater in Rear of Coach
Electrical
- 5.5 kW Onan® Generator with Remote Switch and Automatic Changeover
- Six 6-Volt House Batteries
- Battery Disconnect Switch for House Battery
- 12-Volt Auxiliary Receptacle on Dash
- Daytime Running Lights
- Emergency Engine Start Switch
- LED Ceiling Lights
- LED Awning Strip Lighting
- Lights in Exterior Storage Compartment
- Lights in Wardrobe
- Manually Operated Hold-to-Run Slideout Switch
- Cable TV Connection
- USB Outlet at Dash for Driver Use
- USB Charger at Passenger Seat Area
- Drain Lift Pump*
- Dash Radio, Cameras and Monitors to Power-Up from both House Batteries and Ignition
- Multiplex Lighting Control System
- Multiplex Monitor System 10.1 in Center of Coach with Interior Lighting and HVAC Controls
- Two Wireless Phone Chargers in Cockpit
- Power Rewind Reel with 33' Cord*
- Solar Panel 10w to Charge Chassis Battery
- Inverter 2000w True Sine
- Energy Management System
- Automatic Generator Start on Low Battery or Temperature Setting
Optional
- Solar Prep with Six Gauge Wire Ran from Roof to First Storage Compartment
Plumbing
- Demand Water System
- Sewage Holding-Tank Rinse
- Water Heater Bypass System
- Dometic® 310 China Bowl Stool
- ABS Shower Surround with Shower Door
- Exterior Shower Located on Off Door Side
- Systems Monitor Panel
Optional
- Water Filter for Entire Unit
Cabinets and Furniture
- Dusk Maple Cabinet Doors—Suede Finish
- 6-Way Power for Driver Seat
- Manual Footrest on Passenger Seat
- Concealed Hinges on Cabinet Doors
- Drawers Underneath Booth Dinette Seats
- Drawers with Full Extension Ball Bearing Guides
- Pull-Out Pantry Shelves*
- Polished Solid-Surface Countertop in Kitchen with Undermounted Sink and Sink Covers
- Solid-Surface Countertops in Bathroom and Bedroom
- Dinette Booth Williamsburg Sleeper
- Dinette with Power Adjustable Table, Bench Seat and Folding Chair on 3811 Floor Plan
- Williamsburg Sofa and Front Seats
- Passenger Seat Tablet Holder
- Lifts on Bed Top
- Plush Pillow Top Mattress
- Soft-Close Cabinet Drawers
- Molded Silverware Divider Tray
- Bed Base Lowered with Power Incline Head of Bed and Sleep Number® Deluxe Mattress on 3811 Floor Plan
Optional
- Chiffon Maple Cabinets—Suede Finish
- Mesa Glazed Maple Cabinets—Suede Finish
- Two-Tone Chiffon Maple and Dusk Maple Cabinets—Suede Finish
- Two-Tone Chiffon Maple and Mesa Glazed Maple Cabinets—Suede Finish
- Drop Down Bunk Bed Over Driver and Passenger Seats, Extends to Windshield with Front Overhead Cabinet and Bunk Ladder
- Drop Down Bunk Bed Over Driver and Passenger Seats, Extends to Windshield with Bunk Ladder and Fireplace with TV
- Folding Cockpit Table
- Dinette Combo Desk with Buffet Table, Two Fixed and Two Folding Chairs
- Dinette Combo Desk with Free Standing Hidden Leaf Table, Two Fixed and Two Folding Chairs
- Euro Booth Dinette with One Table Leaf
- 74" Sofa Incliner Non-Sleeper
- 74" Theater Seating (Manual) with Reading Lights
- Lowered (Fixed) Bed Base with Freestyle Glide Away Adjustable Bed Mechanism with Air Mattress and Window on 3811 Floor Plan
- Power Adjustable Height Bed Base with Free Style Glide Away Bed Mechanism with Air Mattress and Window on 3811 Floor Plan
- Bed Base Full Height on 3811 Floor Plan
- 68" Visionary Sofa V2 Trifold with Memory Foam Mattress
- 74" Visionary Sofa V2 Trifold with Memory Foam Mattress
Appliances
- 30" Convection Microwave Stainless Steel with Three Burner Cooktop and Air Fryer Feature
- Convection Microwave Below Cooktop on 3811 Floor Plan
- 10 Cu. Ft. Norcold® Refrigerator
- 6 Gallon Gas/Electric Water Heater with Electric Ignition
Optional
- 15 Cu. Ft. Norcold® 3-Door Refrigerator with Icemaker
- 110-Volt Heat Pads for Holding Tanks
- 30" Convection Stainless Steel Microwave with Air Fryer Feature in Kitchen Overhead with a Drawer Below Cooktop on 3811 Only
- Washer and Dryer Prep
- Splendide® Two-Piece Stacked Washer and Dryer
- Truma Comfort Plus Continuous Hot Water Heater
- 11 Cu. Ft. Whirlpool® Refrigerator with Ice Maker
- 11 Cu. Ft. Whirlpool® Refrigerator
Interior
- Padded Vinyl Ceiling Panels
- Decorative Wall Art
- Vinyl Plank Floor in Kitchen, Living Area and Bathroom
- Carpeting on Slideout floors
- Interior Assist Handle at Main Entrance Door
- Non-Quilted Fitted Bedspread and Accent Pillow
- Inlayed Six Panel Design Interior Passenger Doors
- Auto Motion Manual Double Roller Shades on Windows Behind Driver and Passenger Area
- Auto Motion Power Shade at Windshield and Manual Shades at Driver and Passenger Side Windows
- Dash Panel Color Coordinated ABS
- Integrated Window Blind System on Entry Door
- Shoe Storage Located in Entrance Doorstep Compartment
- Wastebasket in Kitchen Base Under Sink
Entertainment
Audio & Video Features
- Samsung® LED TV in Living and Bedroom Areas (TV Sizes Vary per Floor Plan)
- Axxera Dash Radio with Android Auto™ or Apple CarPlay® and SiriusXM® Ready, 10" Single Monitor
- Dash Radio with Harman/JBL 180w Sound System
- High-Definition Component Wiring
- Rear-View Colored Monitor System with Audio
- Side-View Cameras Displayed on Rear-View Monitor Screen
- Satellite Dish Prep on Roof
- Winegard Digital Crank Up TV Antenna
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
- TV Jack and 110-Volt Recept in Door Side Exterior Storage Compartment
Optional
- 43" Samsung® LED TV on Televator with Fireplace in Place of Front Overhead TV on 3811 Only
- Bose® Soundbar Sound System
- Exterior Entertainment Center in Storage Compartment with 32" Samsung® LED TV, AM/FM Radio and Speakers
- 32" Samsung® LED TV in Front Overhead*
- WiFiRanger Denali/Spruce LTE
- WiFi System Everest with Aspen Interior Router
- Winegard Automatic Dome Satellite Dish-for DISH Std/HD, DIRECTV Std. and Bell Canada
- Winegard Automatic Open Face Satellite Dish-for DISH HD and Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-for DIRECTV Std/HD
- Winegard In-Motion Dome Satellite Dish-for DISH Std/HD, DIRECTV Std/HD and DIRECTV Std, and Bell Canada
- Winegard Rayzar Automatic Digital TV Antenna
- Starlink Internet System
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
