+101-
Sleeps 5
-
4 Slides
-
Rear Bedroom
-
37ft Long
-
21,765 lbs
-
Gable, Ryder, Urban

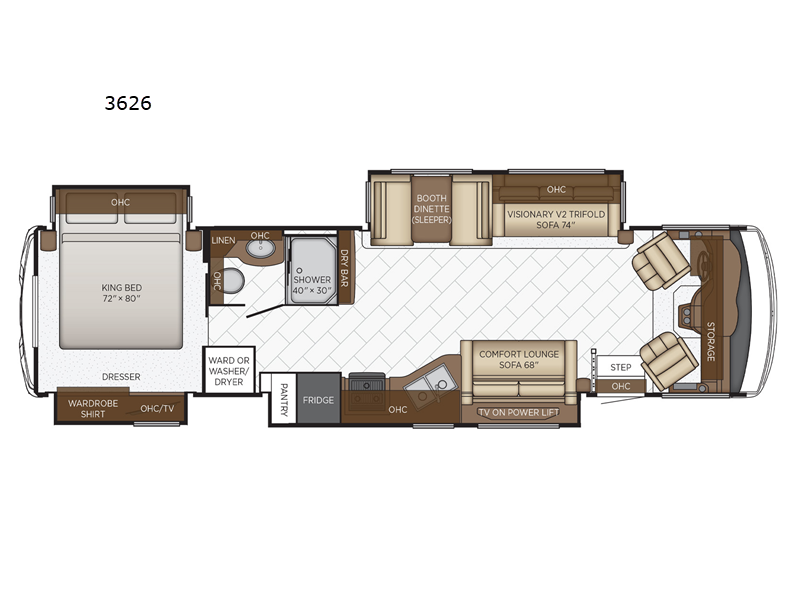

3626 Floorplan
Specifications
| Sleeps | 5 | Slides | 4 |
| Length | 36 ft 11 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 8 in | Int Height | 6 ft 8 in |
| Interior Color | Gable, Ryder, Urban | Exterior Color | Gable, Ryder, Urban |
| Hitch Weight | 5000 lbs | GVWR | 26000 lbs |
| Dry Weight | 21765 lbs | Cargo Capacity | 4235 lbs |
| Fresh Water Capacity | 75 gals | Grey Water Capacity | 60 gals |
| Black Water Capacity | 40 gals | Furnace BTU | 40000 btu |
| Generator | 5.5 kW Cummins Onan | Fuel Type | Gas |
| Miles | 13489 | Engine | 7.3L V8 |
| Chassis | Ford F-53 | Horsepower | 350 hp |
| Fuel Capacity | 80 gals | Wheelbase | 252 in |
| Available Beds | King | Torque | 468 ft-lb |
| Refrigerator Type | Norcold | Refrigerator Size | 10 cu ft |
| Cooktop Burners | 3 | Shower Size | 40" x 30" |
| Number of Awnings | 1 | Axle Weight Front | 9000 lbs |
| Axle Weight Rear | 17500 lbs | LP Tank Capacity | 25 gals |
| Water Heater Capacity | 6 gal | Water Heater Type | Gas/Electric |
| AC BTU | 27000 btu | TV Info | LR Samsung LED, BR Samsung LED |
| Awning Info | Carefree Travel'r Power Side Awning w/Strip Lighting | Washer/Dryer Available | Yes |
| Gross Combined Weight | 30000 lbs | Shower Type | Standard |
| Electrical Service | 50 amp | VIN | 1F66F5DN3L0A17703 |
Description
Newmar Bay Star Class A gas motorhome 3626 highlights:
- Comfort Lounge Sofa
- Pantry
- King Bed Slide Out
- Front Overhead Storage
- 10 Cu. Ft. Norcold Refrigerator
- 6-Way Power Driver's Seat
Four slide outs make this motorhome both spacious and comfortable for all your excursions! The passenger workstation will be big plus if you need to telecommute on the way to the campground, and your guests can stay comfortable on the comfort lounge, the booth dinette, and the Visionary V2 tri-fold sofa. This model includes a wardrobe right across from the full bath that includes washer and dryer prep if you choose that option, and the rear private bedroom will feel just like home with its king bed and shirt wardrobe. There is even a bedroom LED TV, along with the living room LED TV on power lift!
Each Bay Star Class A gas motorhome by Newmar delivers a smooth ride thanks to the standard electronic stability control, along with the 7.3-liter V8 engine with 450 HP and 468 lb./ft. of torque and heavy duty sway bars. The exterior is sure to turn heads with its full-paint Masterpiece Finish, and you'll have three interior decor choices and three wood choices to truly make the coach your own. Each model includes newly styled Williamsburg furniture, luxurious vinyl tile flooring, polished solid surface countertops in the kitchen, plus many more comforts. Head outside to find lit basement storage, a 5.5kW Onan generator with remote switch, and smart level hydraulic leveling jacks with a Bluetooth compatible touch pad for set up easy as 1-2-3! You can further customize your coach with the many options that are offered, such as the optional exterior entertainment center, the optional fireplace in the living room, and the optional Whirlpool refrigerator to name a few!
- Ford Chassis, Ryder Full Paint, Harbour Maple Cabinets, Aux Heater in Bedroom, Holding Tank Heat Pad, Convection Microwave, 2 Piece Splendide Washer/Dryer, Continuous Hot Water Heater, Bose Solo Sound Bar, Exterior TV, Sirius Radio Capable, WIFI Ranger, Recliners, 1200 Watt Bedroom Inverter, Solar Prep, Exterior Ladder, Water Filter,
Features
Standard Features (2022)
Exterior
- Exterior Masterpiece Full Painted with Clearcoat Finish
- Diamond Shield Protection on Front Cap
- Automatic Step for Entrance Door
- Convex Exterior Mirrors with Defrost & Remote Control
- Rear Hitch for Towing Car
- Assist Handle at Entrance Door
- Undercoating
- Mud Flaps
- Smart Level Hydraulic Leveling Jacks with Bluetooth Compatible Touch Pad
Optional
- Rear Ladder
- Flag Pole Bracket
Construction
- BriteTEK™ Roof with Walkable Deck
- Gelcoated Fiberglass Exterior Sidewalls, Front & Rear Caps
- Aluminum-Frame Sidewalls & Roof Construction, on 16" Center
- 5/8" Foam Insulation Laminated in Sidewalls & Ceiling
- Polar Pak R19 Batten Insulation in Roof
- Automatic Mechanical Lock Arms on Slide out Rooms-Scissor Style
Optional
- Egress Door with Ladder System
- Power Entrance Step Well Cover on 3811
- Power Opening Entrance Door for Wheelchair Lift on 3811
Chassis
- Ford F-53 Chassis with 7.3Ltr V-8 Engine, 22,000 lb. on 30'-33' Floorplans
- Ford F-53 Chassis with 7.3Ltr V-8 Engine, 24,000 lb. on 34' Floorplans
- Ford F-53 Chassis with 7.3Ltr V-8 Engine, 26,000 lb. on 36' - 38' Floorplans
- Tilt Steering Wheel
- Aluminum Wheels
- Anti-Lock Braking System
- Electronic Stability Control
- Cruise Control
Mechanical and Electrical
- One Piece Tinted Windshield
- Frameless Double Pane Tinted Safety-Glass Windows
- Fantastic Vent with Rain Sensor in Kitchen and Bathroom
- Skylight Above Shower
- Carefree Travel'r Power Awning with Alumaguard and Strip Lighting
- Rear Window in Bedroom
- Slide Out Covers
Optional
- Bunk Windows
- Screen Door Over Wheelchair Lift Area on 3811
- Charcoal Tweed Awning
- Linen Tweed Awning
Air Conditioning and Heating Features
- Two 13.5 Penguin Heat Pump A/C, 5.5 Onan Generator, 50 Amp Electrical Service with Energy Management System
- Dash Heater and Air Conditioner
- Propane Gas Furnace with Ducted Heat
Optional
- Auxiliary Heater in Bedroom
Electrical
- 5.5 kW Cummins Onan® Generator with Remote Switch and Automatic Changeover
- 10 Watt Solar Panel to Charge Chassis Battery
- Two 12 Volt House Batteries
- Battery Disconnect Switch for House Battery
- 12 Volt Auxiliary Receptacle on Dashboard
- 45 Amp Converter
- Daytime Running Lights
- Emergency Engine Start Switch
- LED Ceiling Lights
- LED Strip Lighting
- Manually Operated Hold-To-Run Slideout Switch
- Cable TV Connection
- Drain Lift Pump with 1200 Inverter*
- Lights in Wardrobes
- USB Chargers at Driver/Passenger Seat Area
Optional
- 1200 Watt Inverter Ran to TV’s*
- 1200 Watt Pure Sine Inverter for Bedbase, Nightstand and Overhead Cabinet Recepts
- Solar Prep with Six Gauge Wire from Roof to First Storage Compartment
- Power Rewind Reel with 33' Cord
Plumbing
- Demand Water System
- Sewage Holding Tank Rinse
- Water Heater Bypass System
- Dometic® 310 China Bowl Stool
- ABS Shower Surround with Shower Door
- Systems Monitor Panel
- Exterior Shower
Optional
- Water Filter for Entire Unit
Cabinets and Furniture
- Calypso Glazed Maple Mitered Designer Cabinet Doors-Matte Finish
- 6-Way Power for Driver Seat
- Concealed Hinges on Cabinet Doors
- Drawers with Full-Extension Guides
- Drawers Underneath Booth Dinette
- Pullout Pantry Shelves
- Polished Solid Surface Countertop in Kitchen with Stainless Steel Sink
- Solid Surface Countertops in Bathroom and Bedroom
- Williamsburg Sleeper Booth Dinette
- Lifts on Bed Top
- Plush Pillow Top Mattress
- Mesh Cell Phone Holder at Each Bunk*
- Soft Close Cabinet Doors
- Molded Silverware Divider Tray
Optional
- Euro Booth Dinette with One Table Lead
- Harbour Maple Glazed Mitered Flat Designer Cabinets-Matte Finish
- Arctic “B” Glazed Maple Mitered Flat Designer Cabinets-Matte Finish
- Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Release Latches & Bunk Ladder
- Drop Down Bunk Bed Over Driver/Passenger Seats with Electric Release Latches, 32” TV and Front Overhead & Bunk Ladder
- Folding Cockpit Table
- Buffet Dinette
- Buffet Dinette with Free Standing Table
- Combination Desk with Buffet Dinette Table, Two Fixed/Two Folding Chairs
- Combination Desk with Buffet Dinette Table, Two Fixed/Two Folding Chairs
- Combination Desk/Dinette with Free Standing Hidden Leaf Table, Two Fixed & Two Folding Chairs
- Euro Booth Dinette with One Table Leaf
- Lowered (Fixed) Bed Base with Freestyle Glideaway Adj. Bed Mechanism w/Air Mattress & Window
- Two Ottomans*
- Power Adj. Height Bed Base with Free Style Glideaway Bed Mechanism w/Air Mattress & Window on 3811
- Two Recliners with Reading Lights
- Theater Seating 74” (Manual) with Reading Lights
- Theater Seating 84” (Manual) with Reading Lights
Appliances
- Recessed Three-Burner Range with Oven and Solid Surface Cover
- Convection Microwave Below Cooktop on BSCA 3811
- 30” Over the Range Stainless Steel Microwave
- Norcold® 10 Cf. Refrigerator
- Raised Panel Refer Door Insert Panel
- 6 gal. Gas/Electric Water Heater with Electronic Ignition
Optional
- Norcold 12 Cf. 4-Door Refrigerator with Icemaker (Removes Pantry)
- Icemaker Added to Standard Norcold Refrigerator
- Icemaker Added to Standard Norcold Refrigerator with Heated Water Line
- 110 Volt Heat Pads for Holding Tanks
- 30” Convection Stainless Steel Microwave with Recessed 3-Burner Cooktop
- 30” Convection Stainless Steel Microwave in Kitchen Overhead with a Drawer Below Cooktop on 3811 Only
- Fireplace in Living Area
- Prep for Two Piece Washer/Dryer
- Splendide Two Piece Stacked Washer/Dryer
- Truma Comfort Plus Continuous Hot Water Heater
- Whirlpool® 11Cf. Refer with Dedicated 1200W Pure Sine Inverter, 2 Extra Batteries & Icemaker
- Whirlpool® 11Cf. Refer with Dedicated 1200W Pure Sine Inverter & 2 Extra Batteries
Interior
- Padded Vinyl Ceiling Panels
- Decorative Wall Art
- Mini Blinds in Kitchen and Bathroom Windows
- Vinyl Floor in Kitchen, Living Area and Bathroom
- Carpeting on Slide Out Floors
- Interior Assist Handle at Main Entrance Door
- Non-Quilted Bedspread and Accent Pillow
- Inlaid Six-panel Design Interior Passenger Doors
- Auto Motion Manual Double Roller Shades on Windows Behind Driver/Passenger Area
- Auto Motion Power Shade at Windshield and Manual Shades at Driver and Passenger Side Windows
- Integrated Window Blind System on Entry Door
- Shoe Storage Located in Entrance Door Step Compartment
Optional
- Vinyl Tile Floor in Place of Vinyl Floor (Minus Bedroom)
- Vinyl Tile Floor in Place of Vinyl Floor (Includes Bedroom)
Entertainment
- Samsung LED TV in Living & Bedroom Areas (TV sizes vary per floor plan)
- Dash Radio AM/FM/CD Player with Harman/JBL 180 Watt Sound System
- Bluetooth Microphone for Dash Radio
- High Definition Component Wiring
- Rearview Colored Monitor System with Audio
- Side View Cameras Displayed onto Rear View Monitor Screen
- Satellite Dish Prep on Roof
- Winegard Digital Crank Up TV Antenna
- 10 Bc Fire Extinguisher, Smoke Detector, Propane and Carbon Monoxide Detector
- TV Jack and 110 Volt Recept in Door Side Exterior Storage Compartment
Optional
- 43” Samsung TV on Televator with Fireplace in Place of Front Overhead TV on 3811 Only
- Bose® Sound Bar Sound System
- Exterior Entertainment Center in Sidewall-Samsung 32” TV Only
- Exterior Entertainment Center in Storage Compartment with Samsung 32” LED TV & AM/FM Radio
- Samsung 32” LED TV in Front Overhead*
- Wifi Ranger Denali/Spruce Lte
- Wifi Ranger Tenton/Poplar Combo
- Winegard Automatic Dome Satellite Dish-Std/HD, Direct TV Std. & Bell Canada
- Winegard Automatic Open Face Satellite Dish-HD and Bell HD TV
- Winegard Automatic Open Face SWM Satellite Dish-Direct TV Std/HD
- Winegard In-Motion Dome Satellite Dish-Std/HD, Direct TV Std. & Bell Canada
- Winegard Rayzar Automatic Digital TV Antenna
- Sirius Radio Capability with Antenna (Does Not Include Monthly Subscription)
- Xite Dash Radio, 6.5” Monitor with Nav-N-Go Navigation System.
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
